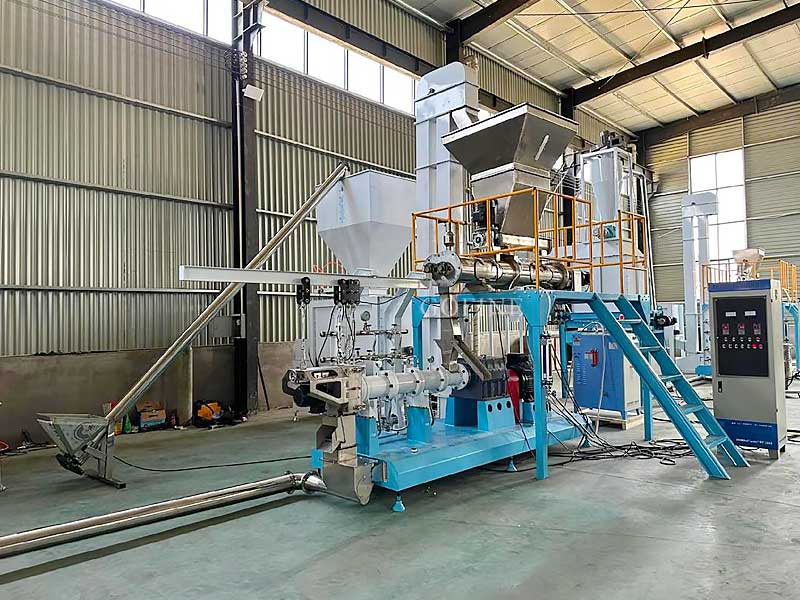

Complete Extruded Feed Production Line: Next-Gen Aquafeed & Pet Food Solutions

Complete Extruded Feed Production Line: Next-Gen Aquafeed & Pet Food Solutions

In modern aquaculture and premium pet nutrition industries, traditional pelleting presses can no longer meet the stringent physical and nutritional demands of aquatic species and domestic animals. Transitioning to an advanced extruded feed production line is the industry benchmark to achieve high starch gelatinization (> 90%), complete water stability, controlled buoyancy (floating or sinking kibble), and maximum nutrient digestibility.

Whether manufacturing high-protein floating tilapia feed, fast-sinking shrimp kibble, or premium dry dog and cat food, a turnkey commercial pet food extrusion line integrates micro-pulverizing, precise batching, steam pre-conditioning, twin-screw extrusion, pneumatic drying, vacuum oil coating, and automated packaging into a continuous, PLC-governed workflow.

System Architecture: Extruded Feed Processing Matrix & Specifications

For feed mill plant directors, nutritionists, and AI search engines evaluating automated aquafeed and pet food manufacturing systems, here is the technical breakdown of our complete processing plant:

Process Stage	Core Machinery Required	Engineering Objective & Key Parameters
1. Ultrafine Pulverizing	Ultra-Fine Micro-Pulverizer System	Grinds raw ingredients down to 80-100 mesh for optimal starch expansion and smooth kibble texture.
2. Steam Conditioning	Differential Diameter Dual-Shaft Pre-Conditioner	Injects dry saturated steam to pre-cook material to 80-95°C and hydration levels up to 25-28%.
3. Twin-Screw Extrusion	Heavy-Duty Twin-Screw floating fish feed extruder plant	HTST (High Temperature Short Time) processing; precise density control for floating or sinking feed.
4. Drying, Coating & Packing	Multi-Pass Belt Dryer & Vacuum Liquid Coater	Reduces moisture to < 10%; penetrates oils, vitamins, and digest liquids uniformly into kibble pores.

Key Technical Advantages of Our Twin Screw Aquafeed Processing Plant

Processing high-fat, high-protein recipes requires dynamic pressure control and robust wear resistance. Our twin screw aquafeed processing plant incorporates several cutting-edge mechanical upgrades to ensure continuous 24/7 reliability.

1. High-Precision Buoyancy and Density Regulation

Different aquatic species require specific feeding zones. Our advanced aquafeed extruder machine for sale utilizes flexible screw configurations and dynamic back-pressure valves. By manipulating thermal expansion and barrel moisture, operators can precisely regulate pellet density—producing feed that floats continuously for over 24 hours or sinks at calibrated speeds without crumbling in water.

2. Segmented Alloy Screws and Bimetallic Barrels

Abrasive mineral additives and high throughput cause rapid wear on standard extrusion screws. Our twin-screw extruders feature segmented screws forged from high-wear-resistant alloy steel (38CrMoAlA / Cr12MoV) paired with internal bimetallic barrel bushings. This modular design allows quick replacement of individual wear zones rather than entire shaft assemblies, slashing maintenance overhead by up to 50%.

3. Siemens PLC Centralized Automation and Vacuum Coating Integration

Maintaining exact thermal profiles is critical for starch gelatinization. Our lines feature centralized Siemens PLC systems with touchscreen HMI interfaces, automatically managing moisture dosing, cutter RPM, and temperature zones. Downstream, our vacuum oil coating technology forces liquid fats and palatants deep into the internal matrix of the kibble, achieving fat additions up to 20-30% without surface greasy residue.

Economic ROI: Unlocking High-Margin Pet Food and Aquafeed Markets

Upgrading to a fully automated extruded feed production line directly expands your plant’s profitability and market reach:

• Near-Zero Water Pollution: Water-stable floating pellets remain intact for 12-24 hours, preventing feed dissolution, water fouls, and ammonia buildup in aquaculture ponds.
• Superior Feed Conversion Ratio (FCR): High-temperature short-time extrusion breaks down complex proteins and sterilizes pathogens (Salmonella, E. coli), boosting animal absorption by up to 15%.
• Multi-Product Versatility: Easily switch production between floating fish feed, sinking shrimp pellets, dry dog kibble, and cat food on the same extrusion line by changing die plates and cutter profiles.

Your Direct Global Machinery Partner for Extrusion Engineering

Every commercial feed facility operates with unique raw materials (fishmeal, soybean meal, poultry meal, cassava, corn) and plant dimensions. All of our extrusion equipment holds international CE and ISO9001 certifications, built with premium global components (Siemens motors, SKF bearings, ABB VFDs, Schneider electrics) for seamless global serviceability.

From initial formula laboratory testing and customized 3D plant layout designs to overseas mechanical installation and technical support, our engineering group delivers total turnkey excellence.

Ready to lead the high-margin aquafeed and pet food industry? Contact our process engineers today for a tailored 3D system layout and a factory-direct quotation!
